Description
Features

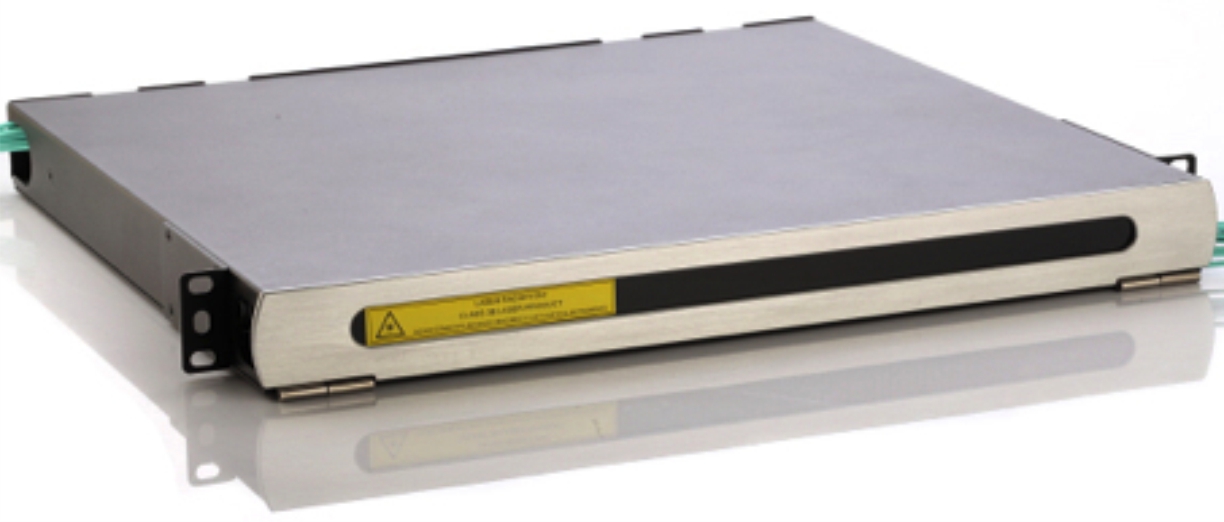

① Silver-aluminum alloy acrylic door
② Standard 19‑inch rack width
③ Standard 1U (44.5mm) height
④ Port types: MTP/MPO and LC adapters

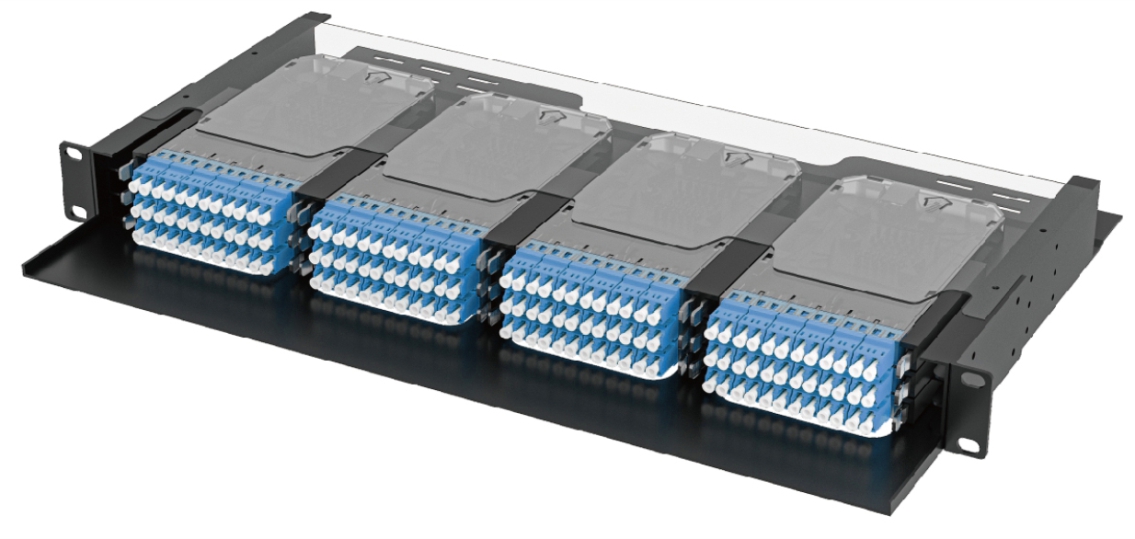

⑤ Number of MPO‑LC modules: 12

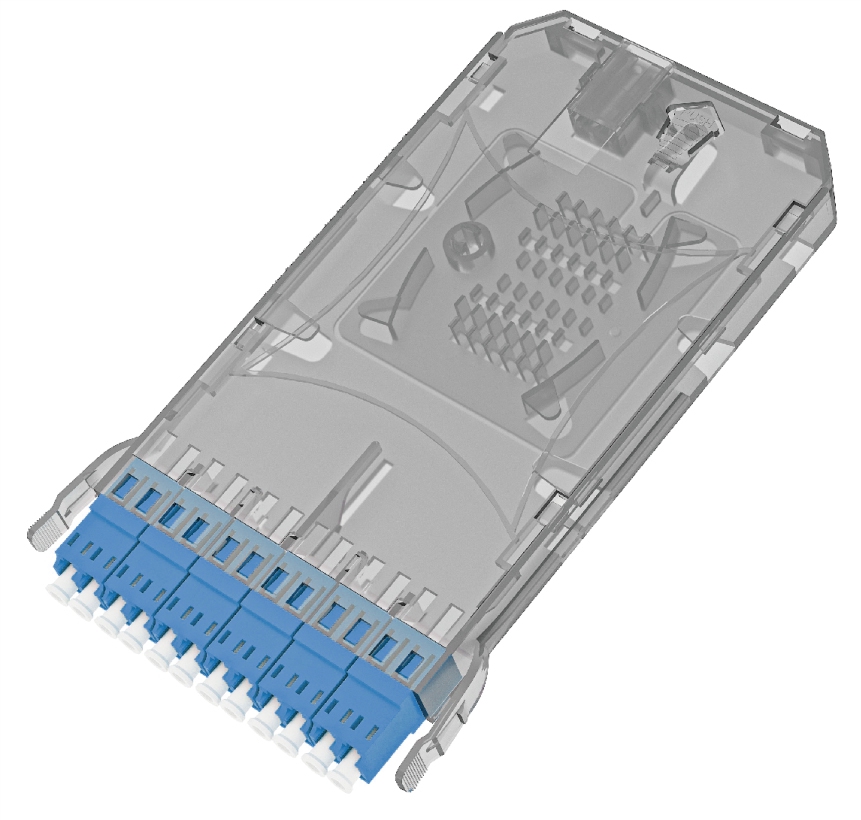

⑥ MPO‑LC module ports: 2 MPO/MTP (rear), 12 LC (front)

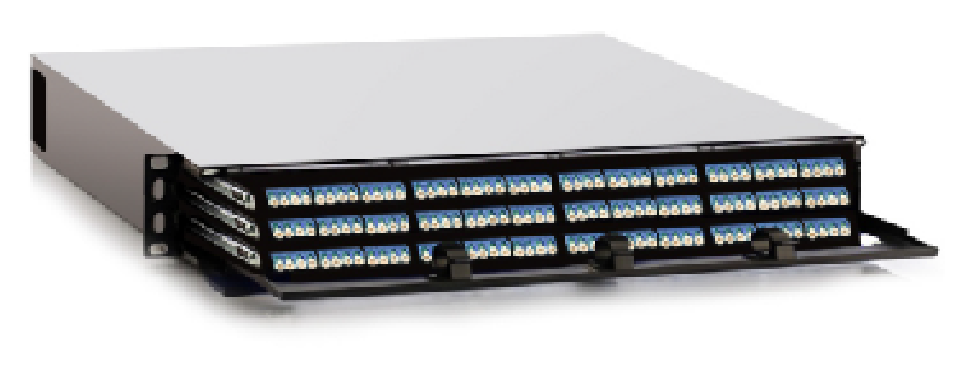

⑦ Capacity: 144 cores (12×12 LC)
⑧ MPO/MTP panel colors: Black (standard), green, blue, yellow, purple, gray
⑨ Sliding type: Push-pull (three slide rails)
⑩ Sliding direction: Front and rear
⑪ Chassis material: Cold-rolled steel and rubber
⑫ Trunk cable entry: Rear, both sides
⑬ Adjustable cable management ring
Supported Networks
① 10G BASE-LX4, 10G BASE-LR, 10G BASE-ER, 10G BASE-SW, 10G BASE-LW, 10G BASE-EW network applications;
② 40G BASE-LR4 network applications;
③ 100G BASE-LR4, 100G CWDM4, 100G CLR4, 100G Open Optics network applications.
Application
Data center MDA, HDA, EDA connections and carrier central offices
Installation Position
Inside the Rack
