Description
Features

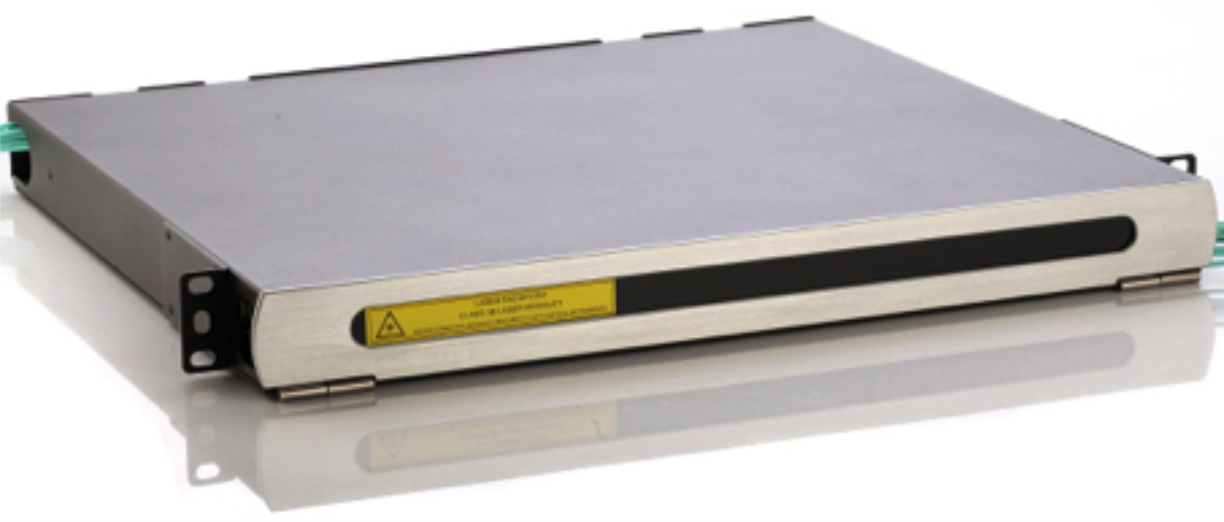

① Silver-aluminum alloy acrylic door
② Label placed behind the door
③ Standard 19‑inch rack width
④ Standard 1U (44.5mm) height
⑤ Depth: 400mm
⑥ Port type: MPO/MTP adapter
⑦ Number of MPO/MTP panels: 4

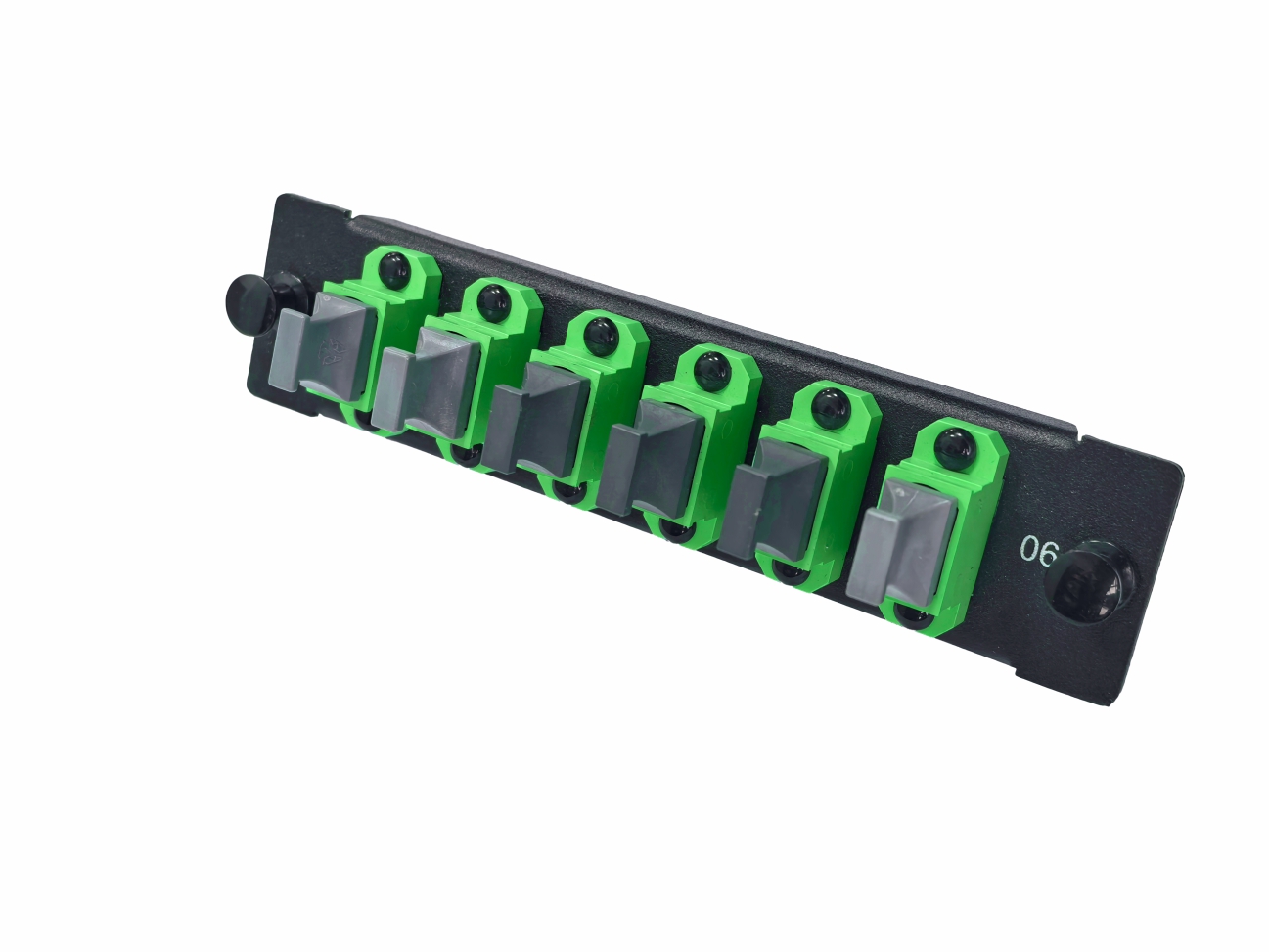

⑧ MPO/MTP panel ports: 6 MPO/MTP adapters per panel
⑨ Capacity: 192 cores (24×8), 288 cores (24×12), 384 cores (24×16), 576 cores (24×24)
⑩ MPO/MTP panel colors: Black (standard), green, blue, yellow, purple, gray

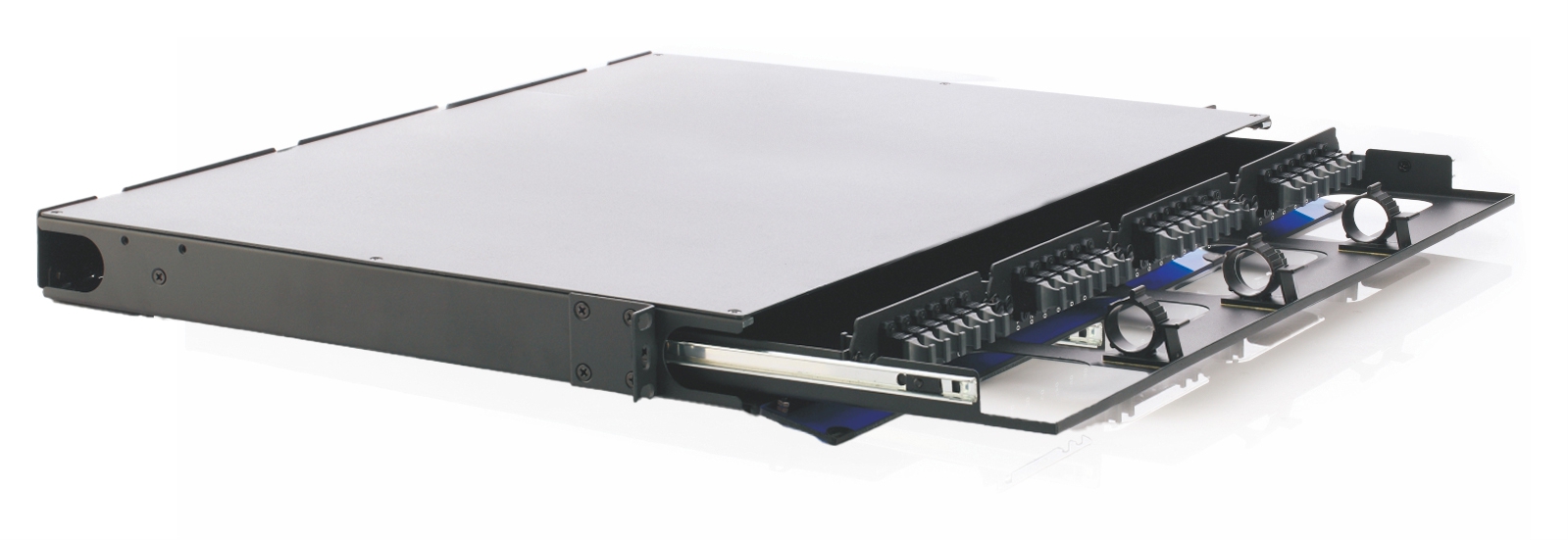

⑪ Sliding type: Push-pull
⑫ Sliding direction: Front and rear
⑬ Chassis material: Cold-rolled steel and rubber
⑭ Trunk cable entry: Rear, both sides
⑮ Adjustable cable management ring
Supported Networks
10G, 40G, 100G, and 400G Ethernet applications
Multi-channel 10G, 40G, 100G, and 400G BiDi network applications
Multi-channel 10G, 40G, 100G, and 400G SWDM network applications
Application
Data center MDA, HDA, EDA connections and carrier central offices
Installation Position
Inside the Rack
