Description
Features

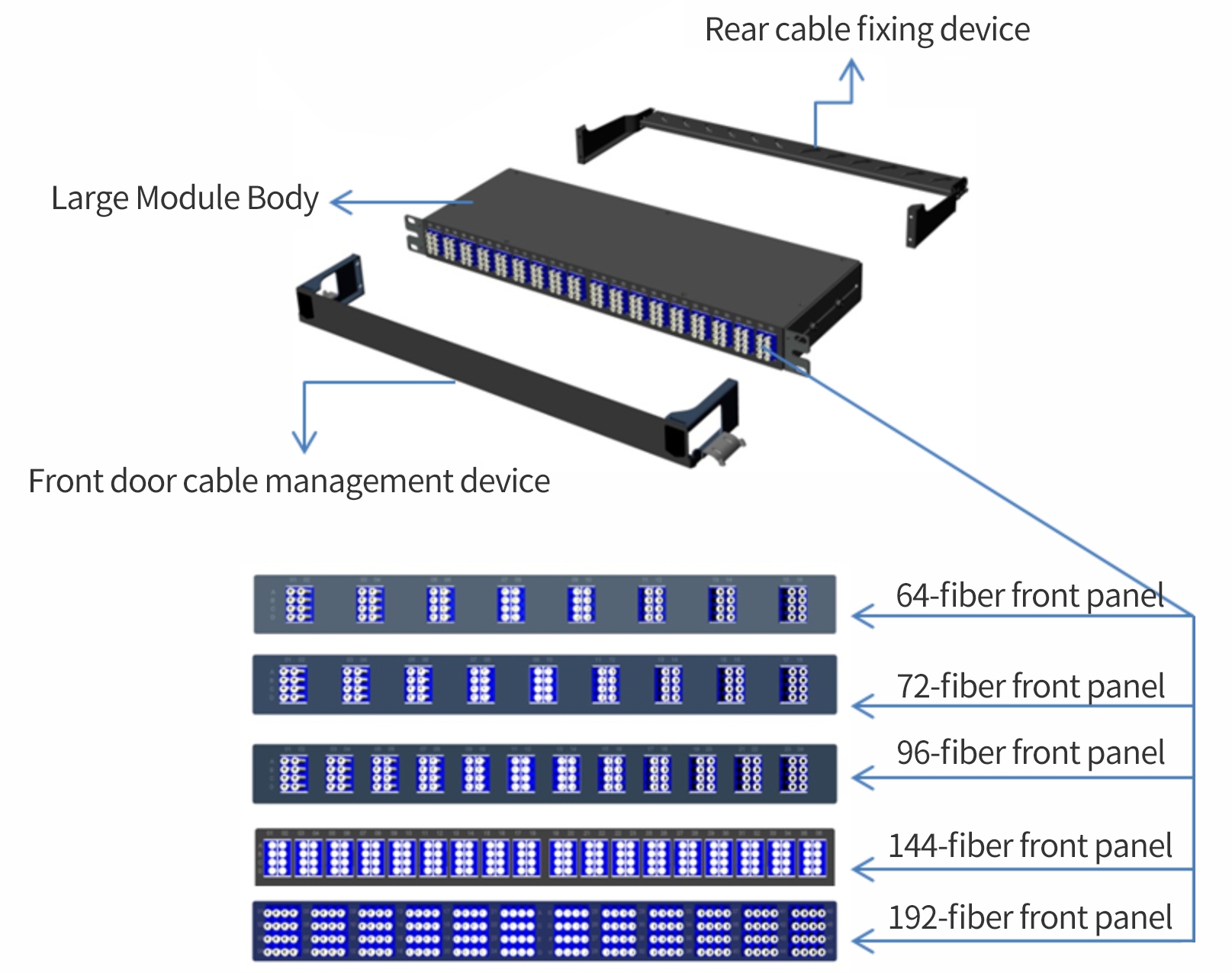

① 1U module height
② Compact high‑density conversion between duplex transmission and parallel transmission
③ Available with LC duplex interfaces for 64, 72, 96, 144, 192 fibers
④ Singlemode OS2
⑤ Suitable for 19‑inch standard racks, cabinets, or ceiling‑mount mini racks
⑥ Stackable in ceiling‑mount mini racks for high‑density applications
⑦ Cable management and clear labeling system on the front
⑧ Patented cable fixing device at the rear to eliminate routing stress and facilitate operation and management
⑨ Compliant with RoHS, TIA 568.C, ISO 11801, EN50173, IEC60297-1, GB/T18663.1
⑩ 100% tested before shipment to ensure product performance and reliability
⑪ Customizable with other fiber counts (up to 192 fibers)
Supported Networks
10G, 40G, 100G, 400G Ethernet applications
Multi-channel 10G, 40G, 100G, 400G BiDi network applications
Multi-channel 10G, 40G, 100G, 400G SWDM network applications
Application
Data center MDA, HDA, EDA connections and carrier central offices
