Description
Features

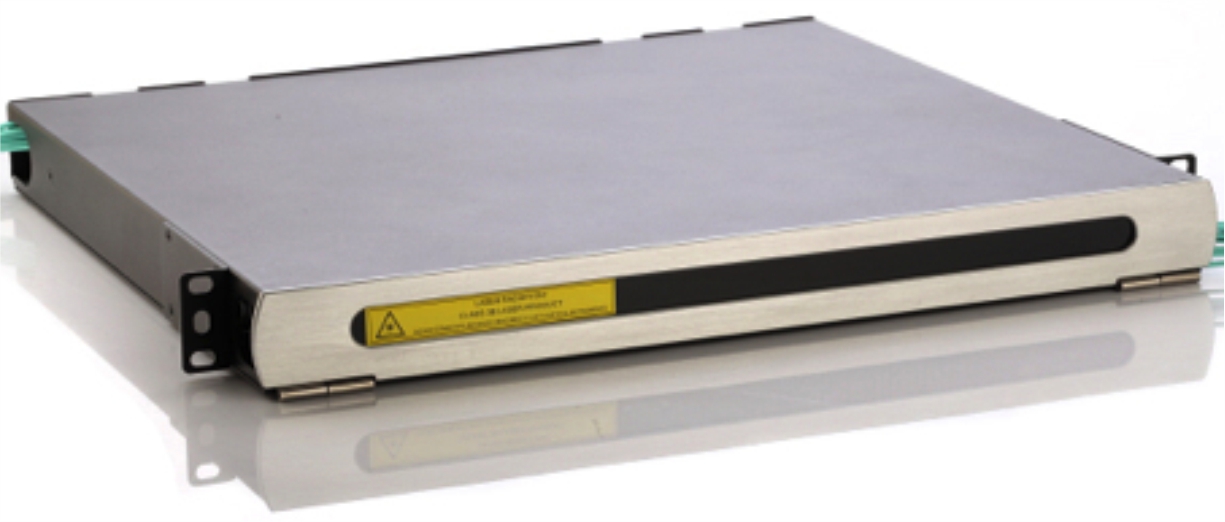

① Silver front door with glass
② Standard 19‑inch rack width
③ Standard 1U (44.5mm) height
④ Port type: Duplex LC adapter

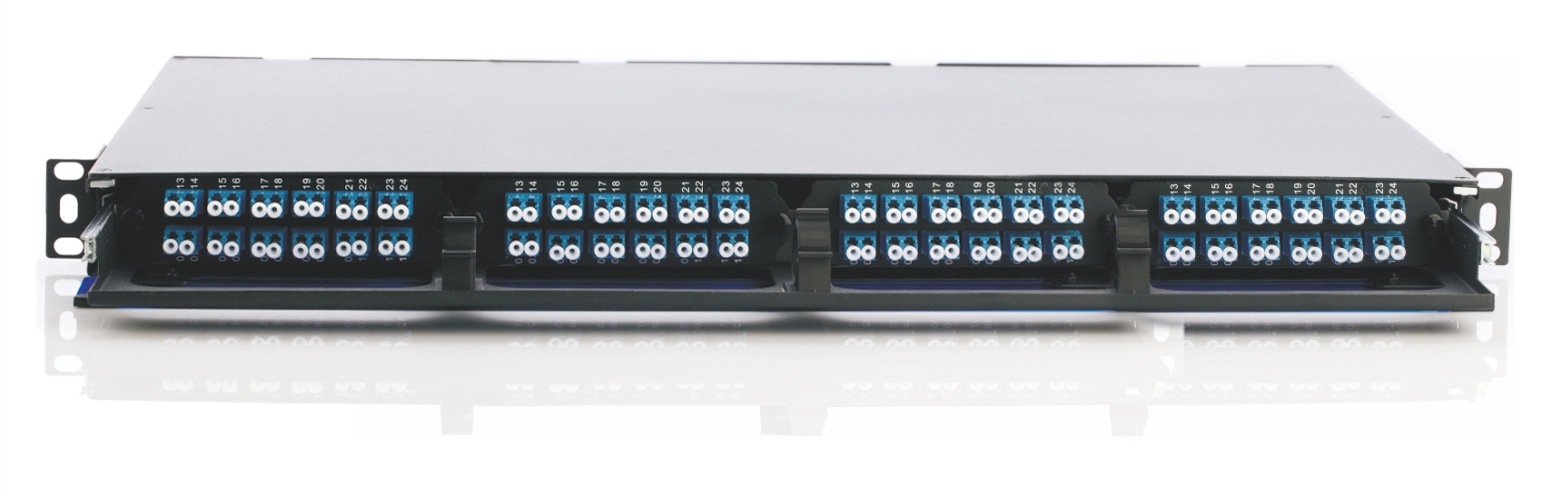

⑤ Number of LC panels: 4

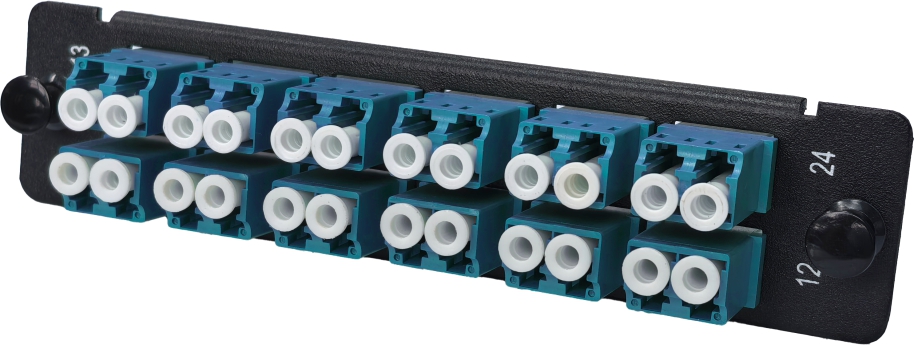

⑥ LC panel ports: 24 duplex LC adapters per panel
⑦ Capacity: 96 cores (4×24 LC)
⑧ LC panel colors: Black (standard), green, blue, yellow, purple, gray
⑨ Sliding type: Push-pull
⑩ Sliding direction: Front and rear
⑪ Chassis material: Cold-rolled steel and rubber
⑫ Trunk cable entry: Rear, both sides
⑬ Adjustable cable management ring
Supported Networks
① 10G BASE-LX4, 10G BASE-LR, 10G BASE-ER, 10G BASE-SW, 10G BASE-LW, 10G BASE-EW network applications;
② 40G BASE-LR4 network applications;
③ 100G BASE-LR4, 100G CWDM4, 100G CLR4, 100G Open Optics network applications.
Application
Data center MDA, HDA, EDA connections and carrier central offices
Installation Position
Inside the Rack
