Description
Features
① Silver front door with glass
② Standard 19‑inch rack width
③ Standard 1U (44.5mm) height
④ Port types: MPO/MTP and LC adapters
⑤ Number of MPO‑LC modules: 4

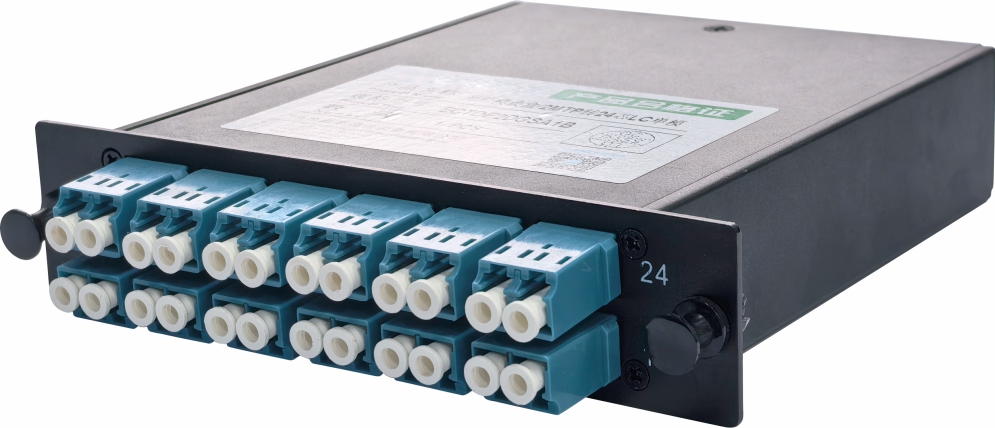

⑥ MPO‑LC module ports: 2 MPO/MTP (rear), 24 LC (front)
⑦ Capacity: 96 cores (4×24 LC)
⑧ MTP panel colors: Black (standard), green, blue, yellow, purple, gray

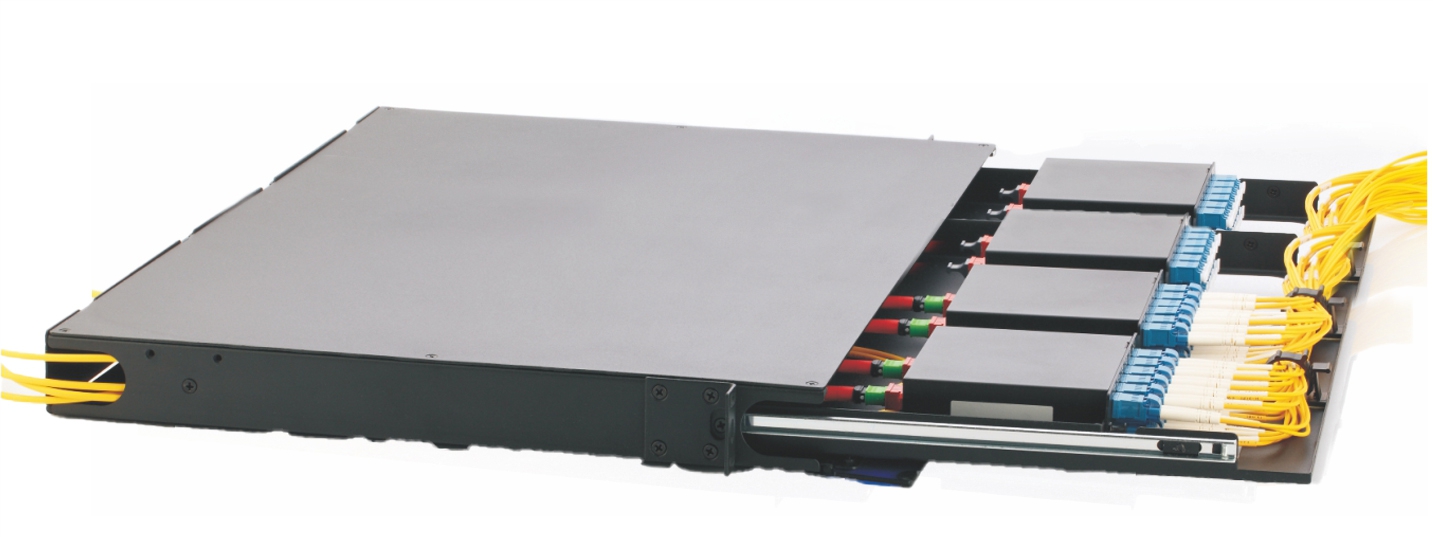

⑨ Sliding type: Push-pull
⑩ Sliding direction: Front and rear
⑪ Chassis material: Cold-rolled steel and rubber
⑫ Trunk cable entry: Rear, both sides
⑬ Adjustable cable management ring
Supported Networks
10G, 40G, 100G, and 400G Ethernet applications
Multi-channel 10G, 40G, 100G, and 400G BiDi network applications
Multi-channel 10G, 40G, 100G, and 400G SWDM network applications
Application
Data center MDA, HDA, EDA connections and carrier central offices
Installation Position
Inside the Rack
