Description
Features
① 100% factory pre-terminated and tested, ensuring product performance.
② Rapid network deployment, reducing installation time.
③ Fiber types: OM3, OM4, OM5

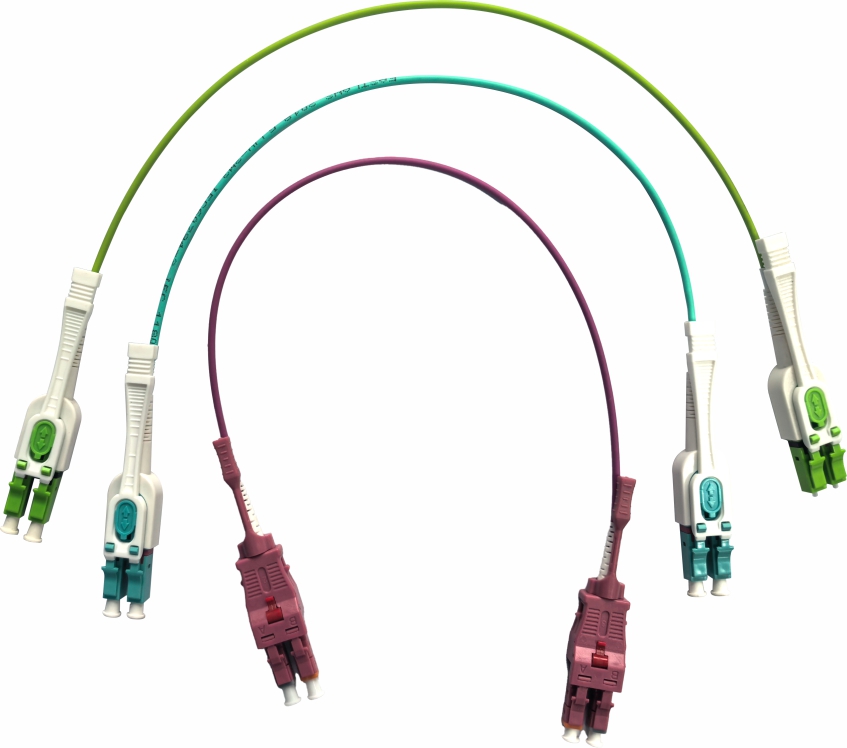

④ Cable color: Light blue (OM3), Rose red (OM4), Lime green (OM5).
⑤ Fire rating: LSZH, OFNR, OFNP
⑥ Fiber count: 2 fibers per cable

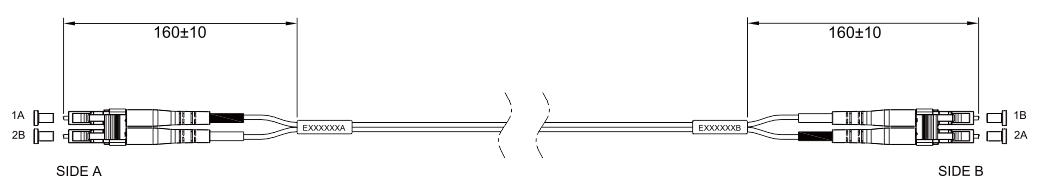

⑦ Side A: Duplex LC
⑧ Side B: Duplex LC
⑨ Customized products available upon request
Supported Networks
10G, 40G, 100G, and 400G Ethernet applications
Multi-channel 10G, 40G, 100G, and 400G BiDi network applications
Multi-channel 10G, 40G, 100G, and 400G SWDM network applications
Application
Data center MDA, HDA, EDA connections and carrier central offices
Installation Position
Inside the rack / Between racks

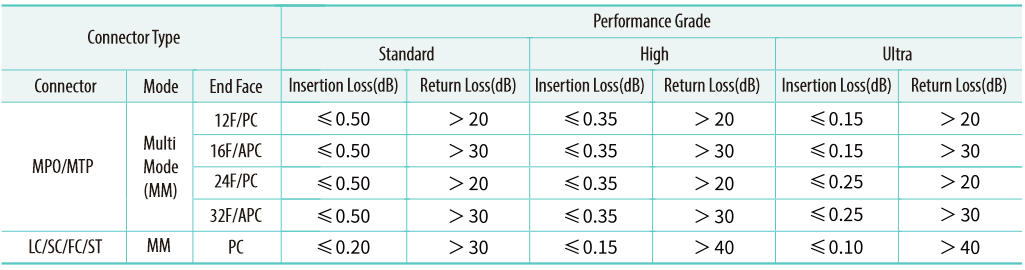

Optical Performance

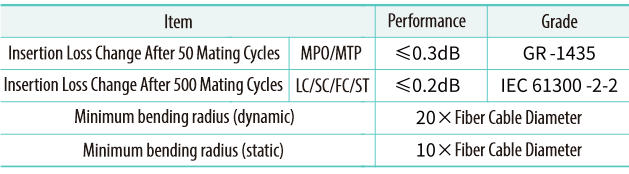

Mechanical Performance

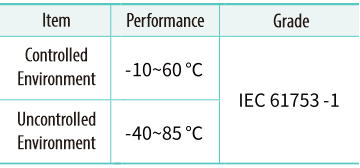

Environmental Conditions
